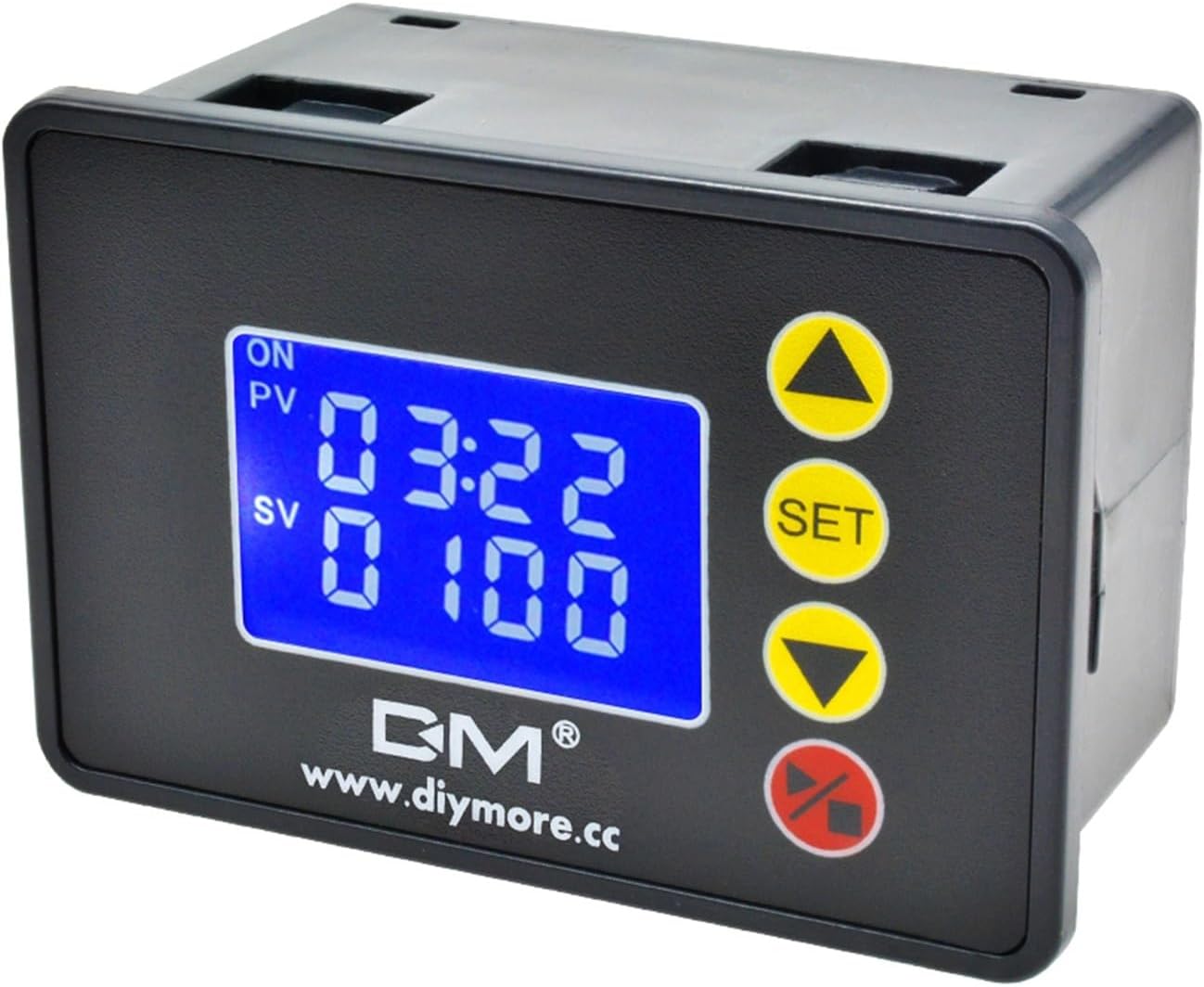

1.37 Inch Programmable Digital Timer Switch Relay Control DC 12V 24V 20A AC 110V 220V 10A Time Controller Delay Relay Module (Color : T2310 DC24V)

RelaysType1 Descripition:Microcomputer time controllerWorking Voltage:AC110V~220V/DC12V/DC24VTiming mode:Countdown TimerTiming unit:Seconds + hours; seconds + minutes; seconds + seconds;Minutes + hours; minutes + minutes; minutes + seconds;Hours + hours; hours + minutes; hours + seconds(total 9 combinations).Cycle mode:Timing on; timing off; first off and then on and then off (no cycle); first on and off and then on (no cycle); first off and then on (cycle); first on and then off (cycle)Working combination mode:54typesDisplay:1.37" LCDDisplay Method:00: 00 ~ 99: 59 (hours, minutes) ;0000 ~ 9999 (seconds)Power supply Method:Working power = control power ;Only one circuit is required for the same circuitPause:YesRestart:YesRelay status indication:ON / OFF (character indication)Data storage:Automatically save the last setting parameters by defaultWorking trigger:Automatic operation after power onControl Power : AC110V~220V /10A/2200W (Max);DC12V/20A /240W (Max) DC24V/20A/480W (Max) Installation method:Embedded installation, need opening, no screwsCrystal:Independent crystal;Time error 0.002%, which is 24h ± 1.728sProduct size: 67×45×34mmHole size: 63×42mmProduct weight:about 63gPackage content:1Pcs * Time ControllerType 2: T2310 Normally Open TimerFeature:Independent crystal oscillator, more accurate timing1. Convenient direct output wiring2. Add buzzer and audible alarm3. Add pause button to stop urgently5. Start and stop setting mode, provincial conversion, which is more convenient6. Automatically save when power off, run automatically when power on7. Timing units can be set separately, with 36 working combinations8. Timing range: 0-999 seconds, minutes, hours9. To count in minutes or hours, the digital tube flashes in seconds.Note: This product is a countdown operation and cannot be set to

• Relays
• 1. Convenient direct output wiring
• 2. Add buzzer and audible alarm
• 3. Add pause button to stop urgently
• 5. Start and stop setting mode, provincial conversion, which is more convenient
• 6. Automatically save when power off, run automatically when power on
