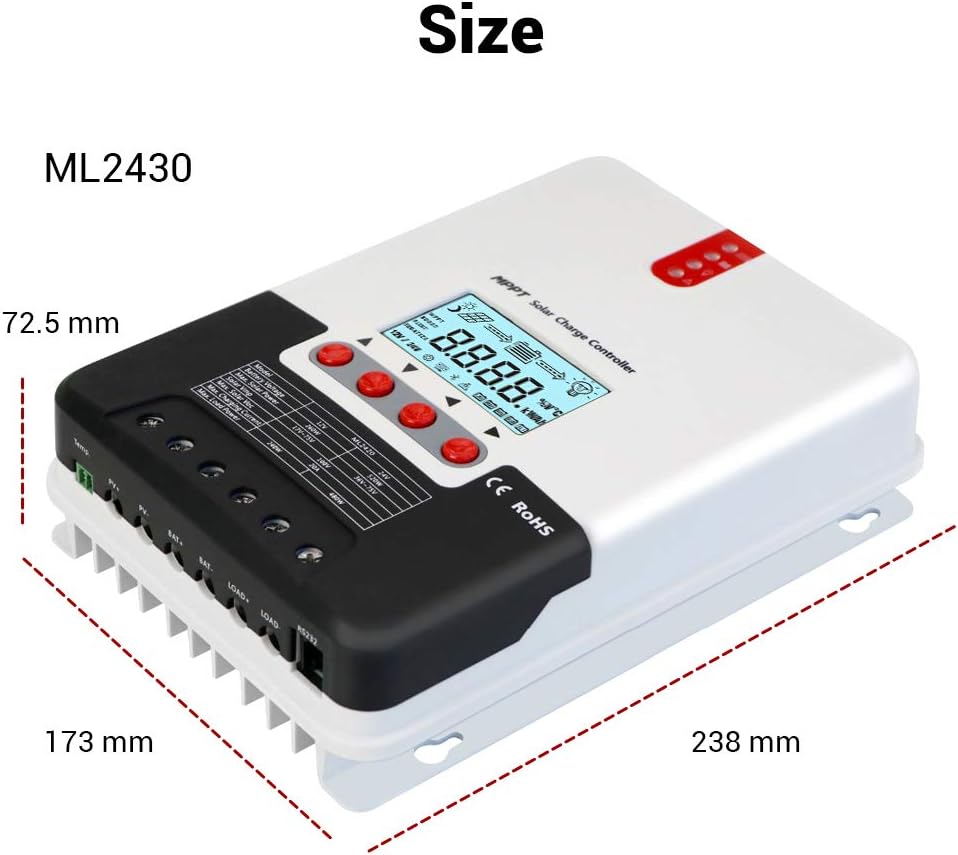

40A MPPT Solar Charge Controller Automatically Identifying 12V/24V Automatically Identifying Max.PV 100V Battery Charging Regulator with LCD Display

Descriptions: The product boasts an optimum MPPT tracking efficiency of up to 99.9%. Advanced digital power supply technologies raise the circuit's energy conversion efficiency to as high as 98%. Charging program options are available for different types of batteries including gel batteries, sealed batteries, open batteries, lithium batteries, etc. The controller features a limited current charging mode. Instantaneous large current startup of capacitive loads is supported. Automatic recognition of battery voltage is supported. Historical data storage function is available, and data can be stored for up to a year. The controller supports standard Modbus protocol, fulfilling the communication needs of various occasions. TVS lighting protection. Specification: System voltage : 12V/24V auto Rated charging current: 40A Max. solar input voltage: 100V(25℃) 90V(-25℃) Max. photovoltaic system input power: 550W/12V 1100W/24V No-load loss: 0.7 W to 1.2W Battery voltage: 9V to 35V Temperature compensation factor: -3mv/℃/2V（default） Protection degree: IP32 Communication method: RS232 Package list: 1 * Solar Charge Controller 1 * Product User Manual

• The product boasts an optimum MPPT tracking efficiency of up to 99.9%, built-in maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems, and raise the charging efficiency by 15% to 20% compared with the conventional PWM method.

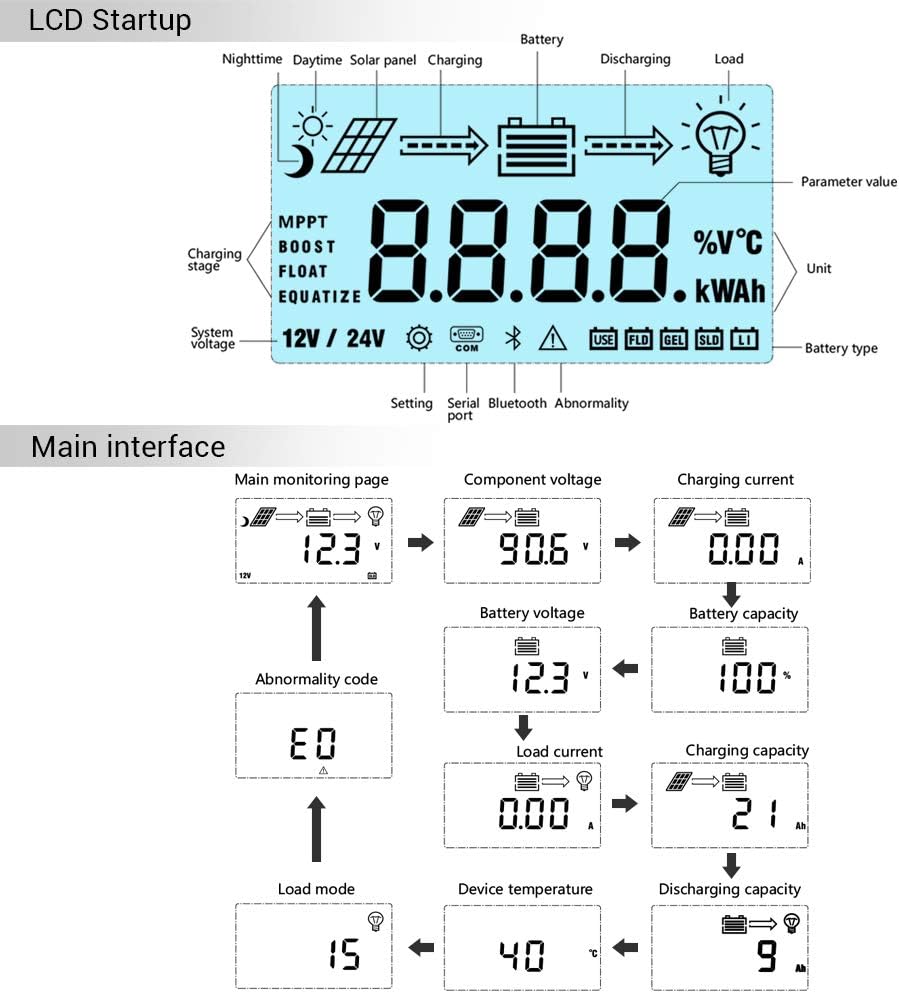

• LED fault indicators and an LCD screen which can display abnormality information help users to quickly identify system faults.
• Historical data storage function is available, and data can be stored for up to a year.
• The controller employs a built-in over-temperature protection mechanism. When temperature surpasses the set value, the charging current will decline in linear proportion to the temperature so as to curb the temperature rise of the controller, effectively keeping the controller from being damaged by overheat. Featuring a temperature compensation function, the controller can automatically adjust charging and discharging parameters in order to extend the battery's service life.
• With Modbus communication protocol interface, it is convenient for customers to expand applications and monitor in various fields like telecommunication base station, household system, street lighting system, wilderness monitoring system, etc.
