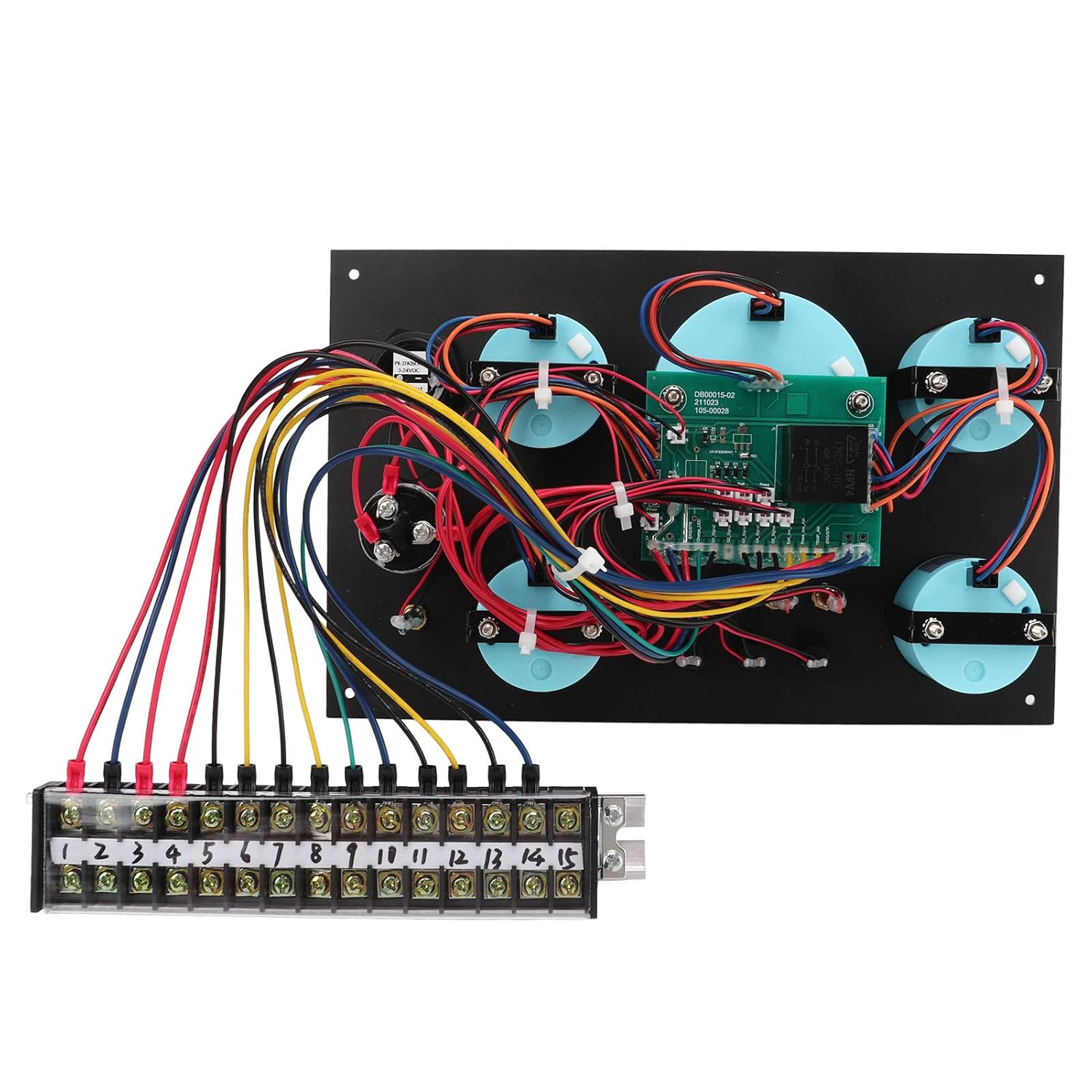

Boat Instrument Panel Tachometer Fuel Level Water Temperature Oil Pressure Meter Voltmeter 5 Dash Gauge Set

Specification: Item Type: Dash Instrument Panel Material: Aluminum alloy+ABS+stainless steel+tempered glass Function Display: 85mm tachometer can display: engine speed 0-4000RPM, 99999.9H timing 52mm water temperature gauge shows water temperature: 100-250℉ (40-120 ℃); (Input 301-22ohms) The 52mm oil level gauge shows the oil volume of the oil tank: F-1/2-E; (Input 0-190ohms) The 52mm oil pressure gauge can display the oil pressure of the oil tank: 0-10Bar (0-145psi); (Input 10-184ohms) 52mm voltmeter can display battery voltage: 8-16V; Mode: LCD display, stepper motor Working Voltage: DC12V circuit system; (Except for the voltmeter, the other four instruments can work in the DC24V circuit system) Working Current: ≤ 100 MA Working Temperature: - 30 ℃ -+75 ℃ Storage Temperature: - 40 ℃ -+85 ℃ Backlight Color: Red Grade: IP67, can work at 1m underwater, excellent antifog function; Application: This instrument panel can be installed in the central control position of your RV yacht or engineering vehicle. It only needs 300 x 190mm / 11.8 x 7.5

• 5 Gauge Set: The dash panel has 5 meters, 85mm tachometer can reveal engine speed 0‑4000RPM, 99999.9H timing; 52mm water temp meter shows water temperature 100‑250℉; 52mm fuel level meter shows tank oil volume F‑1/2‑E; 52mm oil pressure meter can show tank oil pressure 0‑10Bar; 52mm voltage meter can show battery voltage 8‑16V.
• Multifunctional: The instrument panel comes with water temperature alarm, low oil pressure alarm, low voltage alarm, charging indication, light switch, BUZZER switch, ENG STOP SWITCH, etc. All 5 gauges are with red backlight and red LED needles, so you can clearly view each parameter even at night.
• Material: The gauge set is made of aluminum alloy panel, 316L stainless steel front cover bezel, antifog curved transparent lens, industrial grade electronic components and structural parts, IP67 , can withstand mechanical shock and vibration, very suitable for marine and various harsh environments.
• High Accuracy: All gauges adopts pulse motor to drive the pointer to indicate the corresponding scale, high accuracy, easy to read. Adopt ultra wide working voltage design, long term working voltage is 9‑32V, up to 36V (≤ 1 minute), working current ≤ 100mA, ultra‑low power consumption.
• Firm Installation: The back harness connectors of the multifunctional instrument panel is equipped with snaps to ensure a solid connection between the instrument and the harness, so that it can work reliably even when used in strong vibration.
