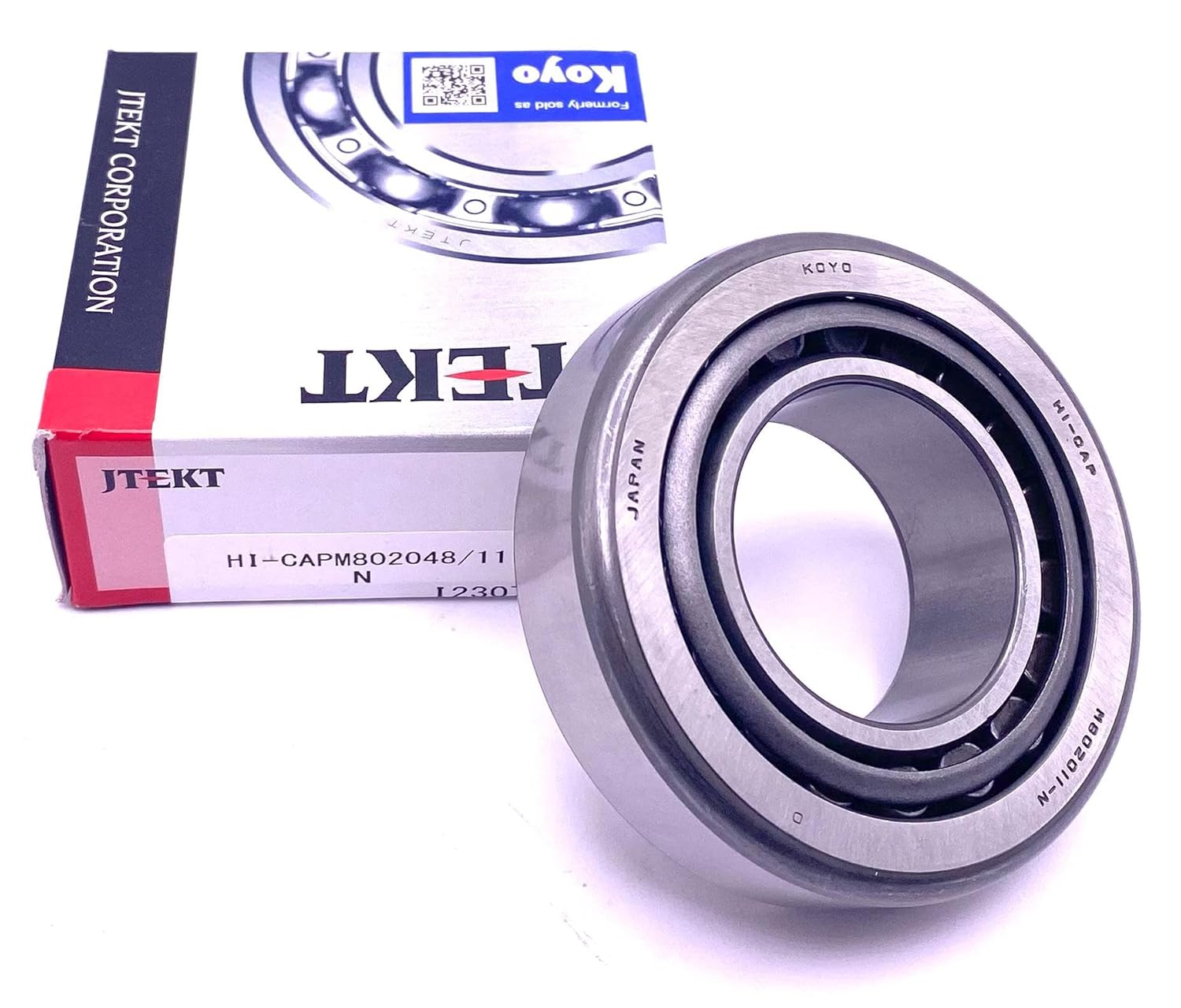

KOYO Japan M802048 / M802011 Tapered Roller Bearing Cone and Cup, 1.6250" Bore x 3.2500" OD x 1.11"

BRAND: KOYO ID: M802048/M802011 MADE IN: JAPAN DESCRIPTION Item Number M802048/11 Koyo (JTEKT) Also known as M802048/011 M802048/M802011 M802048-20024 / 011-20024 M802048-99401 SET328 Category Tapered Roller Bearing Single Row Weight and Dimensions Inner (d) MM41,28 Outer (D) MM82,55 Width (B) MM26,54 Inner (d) Inch1.6250 Outer (D) Inch3.2500 Width (B) Inch1.0450 Weight (kg)0.62 Product Properties Precision Standard Precision Detailed The M802048/11 Koyo (JTEKT) is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity. The M802048/11 Koyo (JTEKT) is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements. Package Includes: One (1) KOYO M802048/M802011 Cup and Cone Set 328
