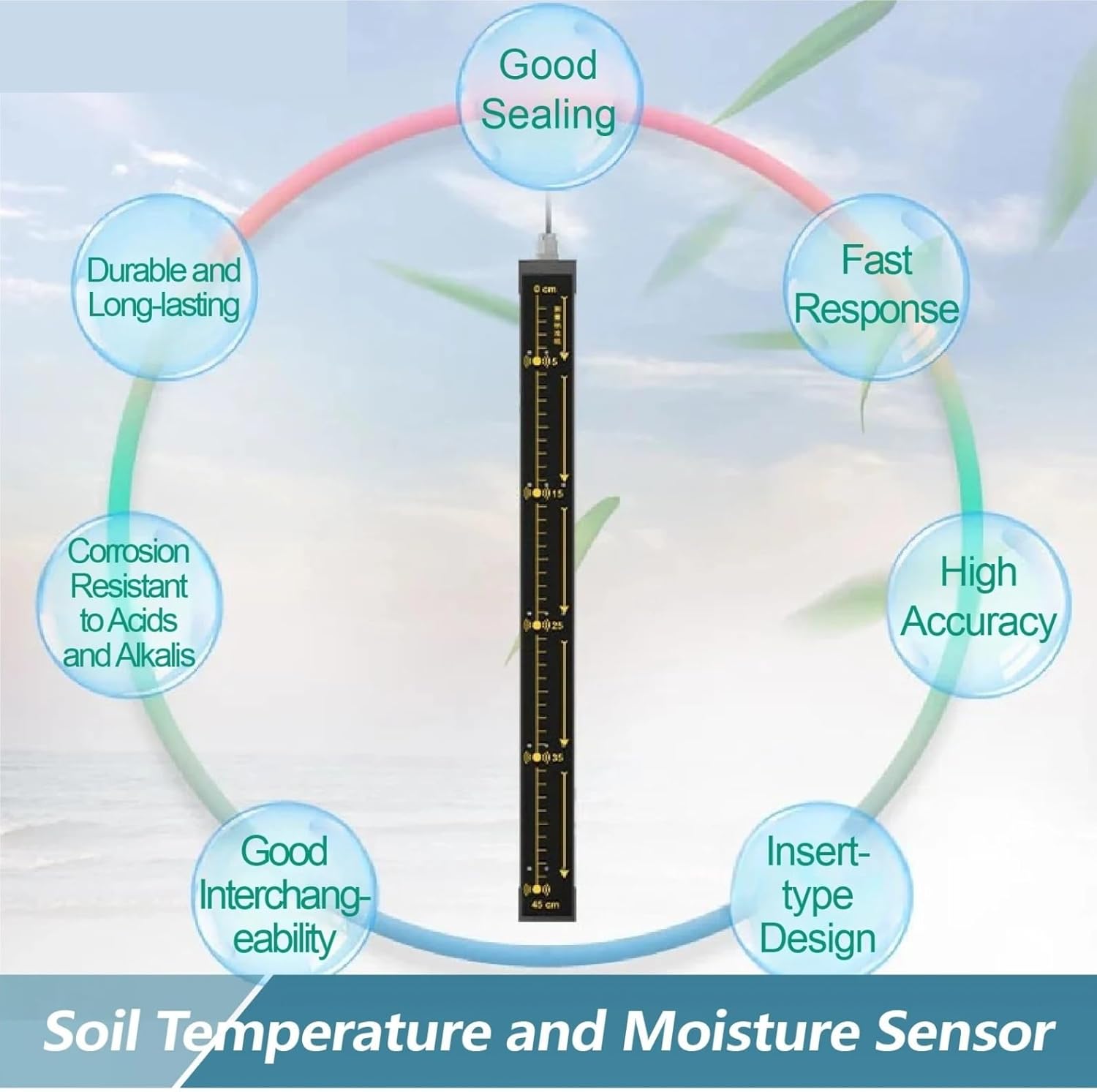

RS485 Soil Moisture & Temperature & EC Sensor Multiparameter Soil Probe(3-M-EC-RS485)

1.NOTEPower Supply: DC 530VMeasured Parameters: Electrical Conductivity (EC), Soil Moisture, Temperature, Nitrogen, Phosphorus, PotassiumCustomization Options: Supports multi-layer soil temperature and moisture monitoringMeasurement Layers: Available in 3-layer or 5-layer configurationsLayer Spacing: 10 cm intervalsStandard Cable Length: 1 meterWaterproof Rating: IP68Data Output: RS485Sensor Material: Special alloy construction2.SpecificationPower Supply: DC 530VMax Power Consumption：1.1W @12VOperating Temperature：-40~+80°CEC Measurement Range：020000 S/cmEC Resolution：10 S/cmEC Accuracy：±3%FS (010,000 S/cm)EC Accuracy：±5%FS (10,00020,000 S/cm)Moisture Measurement Range：0100%Moisture Resolution：0.1%Moisture Accuracy：±2% (050%), ±3% (50100%)Temperature Range：-40~80°CTemperature Resolution：0.1°CTemperature Accuracy：±0.5°C @25°CEC Temperature Compensation：Built-in, 050°COutput Signal：RS485 (Modbus-RTU)Waterproof Rating：IP68Probe Material：special electrodeSeal Material：Flame-retardant black epoxy resinDefault Cable Length：1 meter 3.FeaturesSupports up to 20 layers for simultaneous monitoring of soil temperature and moisture, offering flexible configuration for diverse agricultural needs.Built-in Temperature CompensationAutomatically adjusts EC measurements based on ambient temperature, maintaining accuracy across varying conditions.RS485 Output with Modbus-RTU ProtocolFully compatible with most industrial data loggers and control systems for seamless integration.5.FAQsQ1: How do I install the soil sensor properly?A: Dig a vertical hole (~8cm diameter), insert the probe horizontally into the side wall at the desired depth, then refill and compact the soil. After stabilization, long-term monitoring can begin.Q2: Can this sensor be used underwater or in flooded soil?A: Yes. With IP68 protection and epoxy-sealed stainless steel housing, it can be used for extended submersion and dynamic monitoring.Q3: Is the cable length customizable?A: Yes. The standard cable is 1 meter, but we can customize the length based on your specific needs.==========Power Supply : DC5-30VOperating Temperature : -40~+80°CEC Measurement Range : 0-20000 S-cmEC Resolution : 10 S-cmMoisture Resolution : 0.1%

• 1.You can know the soil pH，Moisture，Temperature that you care about by measuring it, so that you can take better care of our plants, so that they can be healthy and thrive after being well taken care of!
• 2.This soil meter probe uses the latest Soil Sensor Detection Technology to accurately and quickly detect the PH, moisture and temperature of your soil.
• 3.The new and improved technology allows you to better understand your soil and enjoy planting and harvesting.
• 4.Simply insert the probe into the soil about 3-5 inches (10 cm) and wait 10-15 seconds to get an accurate reading of the soil. NOTE: When measuring soil, do not force the probe into dry, hard soil if the soil is too dry.
• 5.When you have any questions and suggestions about this Soil Meter in the process of use, we will listen to your questions and solve your problems quickly. We will help each customer to deal with any problems on the product!
